Drive system for eCity/eTrekking/eMTB/eCargo
Oxygen Comfort
This agile, versatile, and quiet motor is the ideal choice for commuting to work, leisurely outings, or long excursions. It
provides responsive support at the right moment and makes riding a breeze.

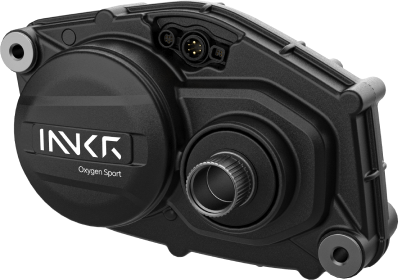

Oxygen Sport
As the perfect choice for demanding MTB eBikers, specially with its smart functions, it delivers ultimate performance and efficiency with utmost control and agility.
Oxygen Cargo/Speed
The Oxygen Cargo can guarantee direct start and robust support for e-cargo bikes, with top speed adjustment 45km/h for S-Pedelec.
| Oxygen Comfort | Oxygen Sport | Oxygen Cargo | |
|---|---|---|---|
|
Application |
eCity/eTrekking |
eMTB |
eCargo |
|
Dimension
|
194.7*124*139.5mm |
194.7*124*139.5mm |
194.7*124*139.5mm |
|
Rated Voltage
|
36/48V
|
36/48V
|
36/48V
|
|
Speed Limit
|
25/45km/h
|
25/45km/h |
25/45km/h
|
|
Maximum Torque
|
60Nm
|
75Nm
|
95Nm |
|
Weight
|
2.6kg
|
2.6kg
|
2.8kg |
|
Rated Power
|
250/500W
|
250/500W
|
250/500W
|
|
Maximum Power
|
600W |
600W |
700W |
|
Maximum Power
Assist Ratio |
600% |
600% |
600% |
|
Max. Efficiency |
> 85% |
> 85% |
> 85% |
|
Noise
|
< 50dBA
|
< 50dBA
|
<55dBA
|
|
Shaft Standard |
INNKR |
INNKR |
INNKR |
|
Walk Mode
|
Support
|
Support
|
Support
|
|
Decoupling
|
Support
|
Support
|
Support
|
|
Light Voltage
|
6/12V
|
6/12V
|
6/12V
|
|
Chainwheel
|
32~52T
|
32~52T
|
32~52T
|
|
Waterproof Rating |
IP65
|
IP65
|
IP65
|
|
Certification |
EN15194/RoHS/ISO13849 |
EN15194/RoHS/ISO13849 |
EN15194/RoHS/ISO13849 |
| Oxygen Comfort | Oxygen Sport | Oxygen Cargo | |
|---|---|---|---|
Application | eCity/eTrekking | eMTB | eCargo |
Dimension | 194.7*124*139.5mm | 194.7*124*139.5mm | 194.7*124*139.5mm |
Rated Voltage | 36/48V | 36/48V | 36/48V |
Speed Limit | 25/45km/h | 25/45km/h | 25/45km/h |
Maximum Torque | 60Nm | 75Nm | 95Nm |
Weight | 2.6kg | 2.6kg | 2.8kg |
Rated Power | 250W | 250/350W | 250/350/500W |
Maximum Power | 600W | 600W | 750W |
Assist Ratio | 600% | 600% | 600% |
Max. Efficiency | >85% | >85% | >85% |
Noise | <50dBA | <50dBA | <55dBA |
Shaft Standard | INNKR | INNKR | INNKR |
Communication | CAN | CAN | CAN |
Walk Mode | Support | Support | Support |
Decoupling | Yes | Yes | Yes |
Light Voltage | 6/12V | 6/12V | 6/12V |
Chainwheel | 32~52T | 32~52T | 32~52T |
Waterproof Rating | IP65 | IP65 | IP65 |
Certification | EN15194/RoHS/ISO13849 | EN15194/RoHS/ISO13849 | EN15194/RoHS/ISO13849 |
| Output Signal | Digital signal(TTL level) |
|---|---|
|
Sensing Distance |
2~8mm |
|
Voltage range |
0~5V |
|
Waterproof Rating |
IPX6 |
| DM07B | DM07 | |
|---|---|---|
|
|
|
|
|
Dimension |
77.4*52.8*44mm
|
77.4*52.8*44mm |
|
Rated Voltage |
36/48V
|
36/48V
|
|
Screen Type |
2.0” Segment Code
|
2.0” LCD |
|
Communication |
CAN
|
CAN
|
|
Mounting |
Left,Φ22.2mm
|
Left,Φ22.2mm
|
|
Waterproof Rating |
IPX5
|
IPX5
|
|
Certification |
EN15194/RoHS/CE/ISO13849 |
EN15194/RoHS/CE/ISO13849 |
| DM07B | DM07 | |
|---|---|---|
|
|
|
|
|
Dimension |
77.4*52.8*44mm
|
77.4*52.8*44mm |
|
Rated Voltage |
36/48V
|
36/48V
|
|
Screen Type |
2.0” Segment Code
|
2.0” LCD |
|
Communication |
CAN
|
CAN
|
|
Mounting |
Left,Φ22.2mm
|
Left,Φ22.2mm
|
|
Waterproof Rating |
IPX5
|
IPX5
|
|
Certification |
EN15194/RoHS/CE/ISO13849 |
EN15194/RoHS/CE/ISO13849 |
| Power Tube | Range Extender | |
|---|---|---|
|
|
|
|
|
Dimension |
430*94*64mm
|
253*79*79mm |
|
Configuration
|
13S 3P
|
13S 1P
|
|
Capacity |
Max. 48V 15Ah
|
Max. 48V 5Ah |
|
LED Indicatior |
Single LED with 3 colors
|
Single LED with 3 colors
|
|
Communication
|
CAN
|
CAN
|
|
Dual Battery
|
Support
|
Support
|
|
Waterproof Rating |
IPX6
|
IPX6
|
|
Certification |
EN15194/RoHS/CE/ISO13849 |
EN15194/EN50604/RoHS/CE |
