Drive system for eCity/eUrban/eTrekking

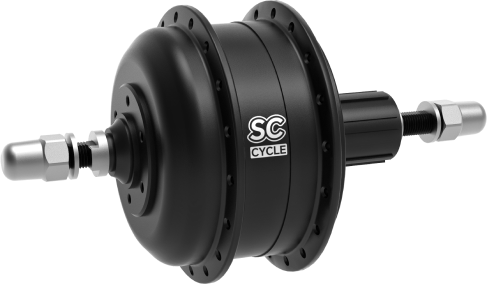

Cycle SC
Smooth, lightweight and quiet, the Cycle SC is the perfect choice to get around the city or enjoy leisurely rides.
| Application | eCity/eTrekking | ||||
|---|---|---|---|---|---|
|
Rated Power |
250W |
||||
|
OLD |
145mm |
||||
|
Weight |
2.4kg |
||||
|
Brake Type |
Disc brake |
||||
|
Certification |
RoHS/CE |
||||
Panda, a versatile compact small controller, integrates comprehensive eBike functions, such as light, and keeps interfaces for future extended function. It enables to meet various system specification requirements with the same hardware, whether it be with a torque sensor, cadence sensor, throttle or without a throttle.
| Rated Voltage | 36/48V | ||||
|---|---|---|---|---|---|
|
Rated Power |
250/350/500W |
||||
|
Maximum Current |
14/16/18A
|
||||
|
Communication
|
CAN
|
||||
|
Waterproof Rating |
IP65
|
||||
|
Certification |
EN15194/RoHS/ISO13849 |
||||
| Walk Mode | 6km/h | ||||
|---|---|---|---|---|---|
|
Light Control
|
Support |
||||
|
Turning Light |
Support |
||||
|
E-Brake |
Support |
||||
|
Throttle
|
Support |
||||
|
MMW
|
Support |
||||
|
IoT
|
Support |
||||
| Torque Measuring Range | 0.5~80N.m | ||||
|---|---|---|---|---|---|
|
Speed Signal Pulse |
36r |
||||
|
Bottom Bracket Width |
68/73mm
|
||||
|
Waterproof Rating
|
IPX5
|
||||
| DM02 | DM07 | |
|---|---|---|
|
|
|
|
|
Dimension |
64*48*15mm
|
77.4*52.8*44mm |
|
Rated Voltage |
36/48V
|
36/48V
|
|
Screen Type |
2.0” LCD
|
2.0” LCD |
|
Communication |
CAN
|
CAN
|
|
Mounting |
Left,Φ22.2mm
|
Left,Φ22.2mm
|
|
Waterproof Rating |
IPX5
|
IPX5
|
|
Certification |
EN15194/RoHS/CE/ISO13849 |
EN15194/RoHS/CE/ISO13849 |
| DM02 | DM07 | |
|---|---|---|
|
|
|
|
|
Dimension |
64*48*15mm
|
77.4*52.8*44mm |
|
Rated Voltage |
36/48V
|
36/48V
|
|
Screen Type |
2.0” LCD
|
2.0” LCD |
|
Communication |
CAN
|
CAN
|
|
Mounting |
Left,Φ22.2mm
|
Left,Φ22.2mm
|
|
Waterproof Rating |
IPX5
|
IPX5
|
|
Certification |
EN15194/RoHS/CE/ISO13849 |
EN15194/RoHS/CE/ISO13849 |
| Power Tube | Powermax | |
|---|---|---|
|
|
|
|
|
Dimension |
430*94*64mm
|
215*100*97mm |
|
Configuration
|
13S 3P
|
13S 2P
|
|
Capacity |
Max. 48V 15Ah
|
Max. 48V 10Ah |
|
LED Indicatior |
Single LED with 3 colors
|
Single LED with 2 colors
|
|
Communication
|
CAN
|
CAN
|
|
Dual Battery
|
Support
|
Support
|
|
Waterproof Rating |
IPX6
|
IPX6
|
|
Certification |
EN15194/RoHS/CE/ISO13849 |
EN15194/EN50604/RoHS/CE |
75*50*24mm
With wiring harneess
Panda, a versatile compact small controller, integrates comprehensive eBike functions, such as light, and keeps interfaces for future extended function. It enables to meet various system specification requirements with the same hardware, whether it be with a torque sensor, cadence sensor, throttle or without a throttle.
